Dramatically improves economic efficiency and operability in press malfunction detection!

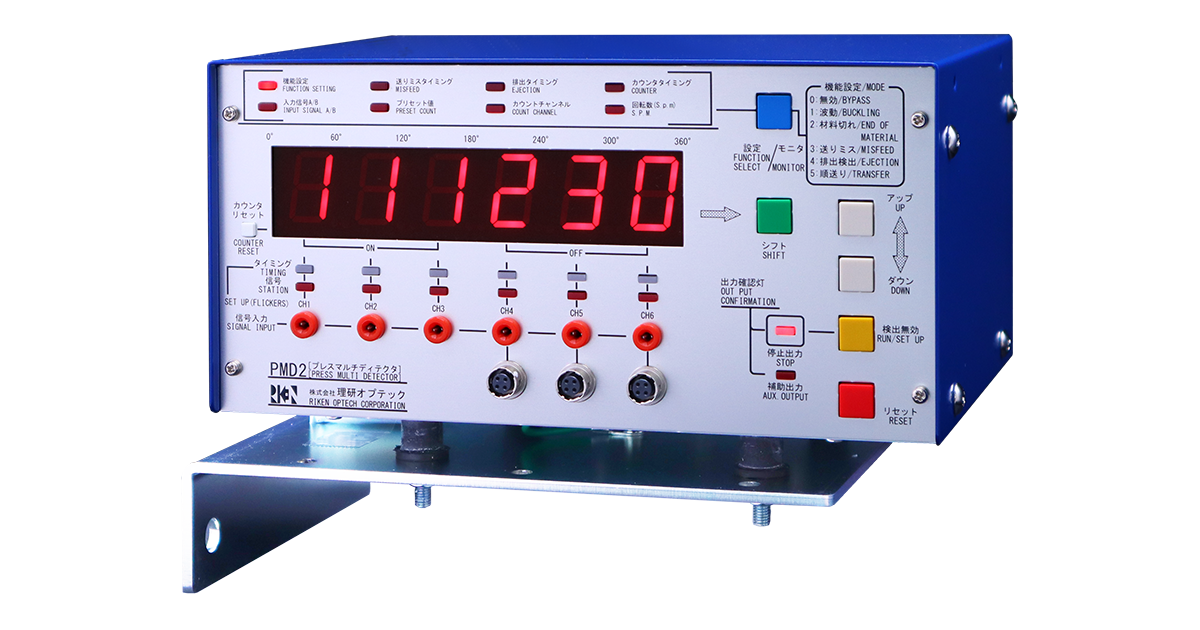

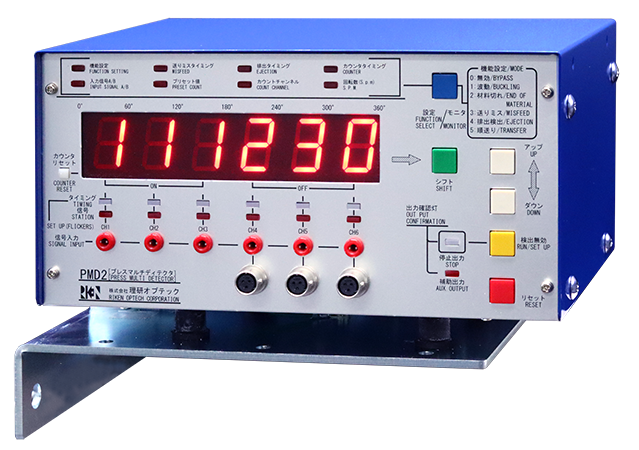

PMD-2 (Press Multi-Channel Press Malfunction Detector) has realized a high-performance and multi-monitoring system with our long experience and advanced technology in line with the diversifying automatic progressive press working. A variety of functions incorporated in each channel can be called with a simple operation and build a required detection system according to the processing methods. The multiple detection function monitors the automatic progressive press operation from various angles to prevent breakdown of dies and production of defective parts.
Features
- Six channels with five built-in functions.
- Required functions are available by simple fingertip-touch operation and are set in each channel.
- A signal from a reference cam allows setting of internal detection timing by one degree for three separate detections.
- A built-in integrating counter and a built-in preset counter permit wider numerical control.
- An input signal, that can be switched to a press-stroke and a product detecting signal, ensures more accurate control.
- A counter output, that can be switched to a timer (one shot) output and a 1/2 (inversion) output, is usable for wider control of peripheral devices.
- SPM display indicates the number of strokes per minute.
- The detection function and operating status set for each channel can be checked by one touch of the monitor button.
- Desired sensors on the market can be used easily.
Specifications
| Power required | 90~240V AC, 50/60Hz |
|---|---|
| Power consumption | 16W |
| Stop output |
Output contact: 1A, 1B Rating: AC250V, 8A (cosΦ=1) |
| Auxiliary output |
Output made: One shot /reverse, Switching Output made: Duration of one shot 1~2.4sec. Output contact: 1C Rating: AC250V, 8A (cosΦ=1) |
| Power interlock output |
Output contact: 1A Rating: AC250V, 8A (cosΦ=1) |
| Ambient temperature range | -5℃~50℃ |
| Sensor output for sensor | DC12V, 0.5A |
| Sensor input power | 10mA (photo-coupler input) |
| Sensor response time |
End of material: Less than 500msec Others: Less than 1msec |
| Backup time | 250 hours (10 days/24℃) |
